Single-Sign-On into Moodle using Admidio as a SAML 2.0 Identity Provider

Starting with version 5.0, Admidio can be used by other applications to authenticate users against Admidios user base. These instructions will guide you through the process of connecting Moodle to Admidio to use Admidio's login. For general instructions, and other apps, please visit the general Single-Sign-On overview page.

There are several SAML plugins for Moodle. We will describe SAML login via the “SAML2 Single sign on” plugin. Unfortunately, that app does not (yet) use rule mapping (i.e. using Admidio groups to grant permission in Moodle).

There is also the SAML2 SSO Auth plugin, which depends on an separate installation of simpleSAMLphp. If you prefer this pugin, follow the instructions to set up SimpleSAMLphp with Admidio. Once SimpleSAMLphp is working, connecting the Moodle installation to SimpleSAMLphp using the SAML2 SSO Auth is rather straightforward.

Throughout the document we will assume you have both Admidio and Moodle already set up properly at https://admidio.local/ and https://moodle.local/. Please modify these URLs to your actual installation.

As a first step, one needs to configure Admidio to act as an SAML 2.0 Identity Provider (IdP). This has to be done once and is not specific to any client. Please follow this guide: #a_basic_setup_for_admidio_as_a_saml_id_provider

Basically, one (1) needs to create a cryptographic key to sign message and choose a unique EntityID. The page preferences https://admidio.local/modules/preferences.php?panel=sso also provides the link to the metadata xml, and the individual settings in case a client does not support auto-configuration via metadata.

Setting up a client (SAML “Service Provider” - short SP) to use Admidio's user accounts for logging in consists of two steps. If both the IdP (Admidio in our case) and the SP (Moodle in this document) support metadata loading, the setup is very straightforward and easy. Otherwise, one has to copy URLs manually to the client, but Admidio already provides these in a single place, so this situation is not as bad, either.

• At the Service Provider (SP) - Moodle in our case - install the extension to support SAML login.
• Configure it either with Admidio's XML metadata file, or enter the EntityID, the Single-Sign-On Endpoint, the SLO Endpoint and the public certificate manually (Admidio provides a simple table to copy these values from).
• Choose whether sent messages should be signed and/or encrypted (these features require an additional private key and certificate for the SP!), and whether received messages are checked for signatures or encryption is expected.
• In Admidio, create a new SAML client. If the SP provides a metadata URL, paste it and let Admidio automatically load the configuration from the SP. One can also manually paste these settings.
  • Choose an easily understood label for the client (only used in Admidio's list of clients, but has no technical use)
  • Enter the ClientID from the SP, as well as the ACS URL and the SLO response URL. These values must be provided by the client.
• In Admidio, also choose whether sent messages should be signed or encrypted. The crypto key generated in the general SAML setup will be used.
• Optionally select which profile fields should be mapped to SAML attributes and sent to the client, and configure which group memberships should be transmitted.

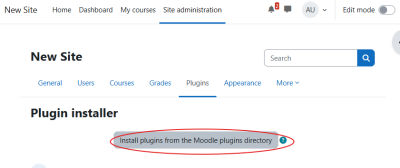

• Install the “SAML2 Single sign on” plugin from Moodle's plugin directory:

• After installing this plugin, go to the plugin list and scroll down to the “Authentication” section (or alternatively, use the URL https://[YOUR_MOODLE]/admin/settings.php?section=manageauths). The SAML plugin should be shown together with a link to the settings.

• Go to the plugin's settings (either via the link in the plugins page, or in the menu item “Plugins” → “Authentication” → “SAML2”.

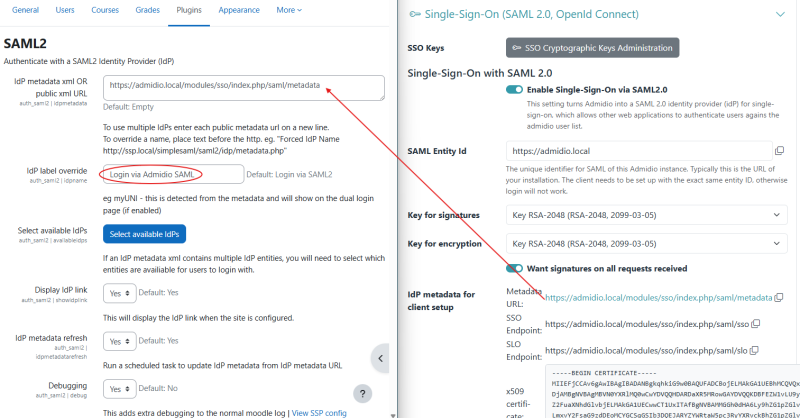

• The plugin supports auto-loading of Admidio's IdP settings. In particular, one only needs to copy the Metadata URL from Admidio to Moodle's plugin configuration, and the plugin will retrieve all endpoint URLs, the key and the signing/encryption settings automatically.
• The “IdP label override” only governs the text displayed on the login button.
• If one wants more than one SAML IdP as user backend, it is possible to configure each IdP with an alias to provide direct login links or tweak the display. Typically, this is not needed, except for special cases.

• The plugin configuration allows the explicit generation of cryptographic certificates / keys for signing and encrypt. Usually the default is sufficient (a key is generated and used by moodle in any case).

• “Settings” → “Users & Companies” → “SAML Providers” and create a new provider.

While the app supports IdP metadata import from Admidio, the corresponding metadata xml file is not automatically loaded, but the xml contents need to be pasted. Download the metadata xml file from the link given in Admidio's preferences (typically https://[YOUR_DOMAIN]/modules/sso/index.php/saml/metadata), open the file and copy the xml contents to Moodle's configuration:

Once the metadata xml is pasted, Moodle will pre-fill most settings:

One key setting is the SP entityID, which is pre-filled as “moodle”. Since the entityID should be a unique identifier (but can be freely chosen), it is recommended to use a more specific ID like the URL of your installation. The entityID will be configured in Admidio, too, and must match exactly!

Moodle also requires a private key / public certificate pair to sign messages sent to the Admidio IdP. These need to be uploaded into the Moodle SAML config as individual files in PEM format and can be generated by openssl's command line tools, by sites like https://www.samltool.com/self_signed_certs.php or in Admidio's key administration. Simply create a new Key for Moodle (RSA 2048 bits). The certificate can be copied directly from the key's edit page, but the private key is not available in Admidio's GUI for security reason. Instead, it can be downloaded (secured with a password!) from the list of keys in Admidio:

After downloading the .p12 file, Applications like KeyStore Explorer can be used to read the private key and copy the private key and the certificate in PEM format into a file and upload them into Moodle's SAML configuration. As signature algorithm choose either SHA1 or the more modern SHA256.

Once these basic SAML settings are done, I would recommend to set up the SP in Admidio, and do the remaining settings (transmitted fields, as well as signing/encryption requirements) in parallel in Moodle and Admidio.

If the basic settings are valid and saved, the Moodle plugin provides a link to the client (SP) metadata XML file right above the certificat upload field. Copy that URL, so it can be pasted into Admidio for auto-configuration of the SAML access (right-click on the link and copy the link location to the clipboard).

Now, return to Admidio's SSO preferences page, go to the “Single-Sign-On Client Administration” (the button right above the “Save” button), and create a new client.

Paste the metadata URL copied from Moodle into the corresponding input field at the top and click “Load Client Metadata”. This should load all settings from Nextcloud and pre-fill the following fields correctly. Only the Client Name needs to be entered. Choose any name to clearly identify the client in the list of SAML clients. There is no functionality depending on the name.

The configuration of both Moodle and Admidio's SAML provides settings to want / require messages to be cryptographically signed to prevent security attacks. Choose your desired level of security, but make sure that the settings are consistent:

The plugin's configuration page also provides a mapping of SAML attributes to Moodle fields. Again, Admidio provides a similar mapping. Whatever information should be transferred from Admidio to Moodle should be configured. The actual SAML / IdP field name is not relevant, only the source Admidio field and the target Moodle field:

Moodle's SAML app only allows connecting existing users to a SAML account from Admidio. It does not have any functionality to create new users when an unknown account successfully logs in via SAML.

This means that one has to manually create all users that should have access to Moodle first, and then assign each one their proper SAML username. Only after that, single-sign-on via Admidio is possible.

First, you have to configure Admidio to use the “Login name - usr_login_name” as the “User ID field”.

Create each user, and in in the “Edit user” form, switch to the “SAML” tab, where you can create a new connection to a SAML account (click “Add a line”, select the Admidio IdP on the left and enter the Admidio username on the right).

Admidio and Moodle should now be set up to use Admidio for logging in to Moodle. If you log out of Moodle (or open Moodle in an incognito browser window) and go to the Moodle admin location, you should see the login screen with the choice of logging in with password or via SAML.

After choosing SAML login and loggin in with a user from Admidio, you should be logged in to Nextcloud.

• Moodle does NOT automatically create a new user account if a successful login from an unknown Admidio account occurs. Instead, one first has to create a new user (or connect an existing user) and connect that user with the proper Admidio user account name. In Admidio's SAML client config, you can select whether to use the numeric user ID, the login name or the email as “User ID field”. Whatever you choose determines which value must be entered in Moodle's user connection field.
• To install the SAML plugin, moodle needs the “pysaml2” library installed first. It can for example be installed from the shell with

  php3 install pysaml2

• If moodle is behind a reverse proxy (e.g. Nginx Proxy Manager), correct proxy settings both in Moodle and the proxy itself is vital to make sure that the SAML endpoints in the metadata file and the actually called endpoints actually use https. Otherwise, login will fail without a helpful error message.
  • In `moodle.conf` set

    proxy_mode = 1

  • Make sure the reverse proxy sends all proper proxy headers, including X-FORWARDED-HOST, which is used by moodle to detect a reverse proxy setup. Nginx Proxy Manager by default does not send this header. It is also not easily possible to add this header in the “Advanced” tab of the Proxy Host in NPM. Instead, one has to add Custom Location for “/” and set the X-Forwarded-Host header there via

    proxy_set_header X-Forwarded-Host $host;

    You need to duplicate the forwarding host information from the main host:
